螺栓/焊接连接阀盖，150LB-600LB缩径，900LB-1500LB全径，明杆支架(OS&Y)
末端连接为法兰，设计按GB/T12224
产品详情

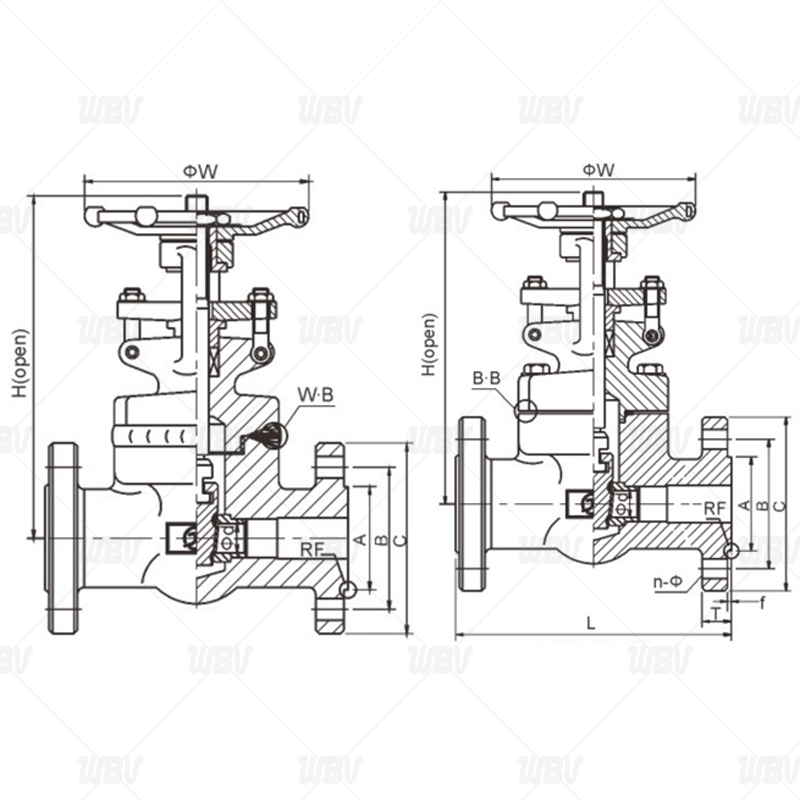

产品图纸
产品尺寸
| PN16/25 RF | ||||||||||||
| NPS（英寸） | Ød | L | H(open) | ØW | A | B | C | T | F | n-Ø | ||
| 1/2″ | 10.5 | 140 | 155 | 100 | 45 | 65 | 90 | 16 | 2 | 4-14 | ||
| 3/4″ | 13 | 152 | 157 | 100 | 58 | 75 | 105 | 18 | 2 | 4-14 | ||
| 1″ | 17.5 | 165 | 186 | 125 | 68 | 85 | 115 | 18 | 2 | 4-14 | ||
| 1 1/4″ | 24 | 178 | 220 | 160 | 78 | 100 | 140 | 18 | 2 | 4-18 | ||
| 1 1/2″ | 29 | 190 | 246 | 160 | 88 | 110 | 150 | 18 | 3 | 4-18 | ||
| 2″ | 36.5 | 250 | 268 | 180 | 102 | 125 | 165 | 20 | 3 | 4-18 | ||
| PN40 FM | ||||||||||||
| NPS（英寸） | Ød | L | H(open) | ØW | A | B | C | d | T | f | f2 | n-Ø |
| 1/2″ | 10.5 | 140 | 155 | 100 | 45 | 65 | 90 | 40 | 16 | 2 | 4 | 4-14 |
| 3/4″ | 13 | 152 | 157 | 100 | 58 | 75 | 105 | 51 | 18 | 2 | 4 | 4-14 |
| 1″ | 17.5 | 165 | 186 | 125 | 68 | 85 | 115 | 58 | 18 | 2 | 4 | 4-14 |
| 1 1/4″ | 24 | 178 | 220 | 160 | 78 | 100 | 140 | 66 | 18 | 2 | 4 | 4-18 |
| 1 1/2″ | 29 | 190 | 246 | 160 | 88 | 110 | 150 | 76 | 18 | 3 | 4 | 4-18 |
| 2″ | 36.5 | 250 | 268 | 180 | 102 | 125 | 165 | 88 | 20 | 3 | 4 | 4-18 |
| PN63 FM | ||||||||||||
| NPS（英寸） | Ød | L | H(open) | ØW | A | B | C | d | T | f | f2 | n-Ø |
| 1/2″ | 10.5 | 165 | 161 | 100 | 45 | 75 | 105 | 40 | 20 | 2 | 4 | 4-14 |
| 3/4″ | 13 | 190 | 163 | 100 | 58 | 90 | 130 | 51 | 22 | 2 | 4 | 4-18 |
| 1″ | 17.5 | 216 | 200 | 125 | 68 | 100 | 145 | 58 | 24 | 2 | 4 | 4-18 |
| 1 1/4″ | 24 | 229 | 220 | 160 | 78 | 110 | 155 | 66 | 26 | 2 | 4 | 4-22 |
| 1 1/2″ | 29 | 241 | 252 | 160 | 88 | 125 | 170 | 76 | 28 | 3 | 4 | 4-22 |
| 2″ | 36.5 | 292 | 290 | 180 | 102 | 135 | 180 | 88 | 28 | 3 | 4 | 4-22 |
| PN100 FM | ||||||||||||
| NPS（英寸） | Ød | L | H(open) | ØW | A | B | C | d | T | f | f2 | n-Ø |
| 1/2″ | 10.5 | 165 | 161 | 100 | 45 | 75 | 105 | 40 | 20 | 2 | 4 | 4-14 |
| 3/4″ | 13 | 190 | 163 | 100 | 58 | 90 | 130 | 51 | 22 | 2 | 4 | 4-18 |
| 1″ | 17.5 | 216 | 200 | 125 | 68 | 100 | 140 | 58 | 24 | 2 | 4 | 4-18 |
| 1 1/4″ | 24 | 229 | 220 | 160 | 78 | 110 | 155 | 66 | 24 | 2 | 4 | 4-22 |
| 1 1/2″ | 29 | 241 | 252 | 160 | 88 | 125 | 170 | 76 | 26 | 3 | 4 | 4-22 |
| 2″ | 36.5 | 292 | 290 | 180 | 102 | 145 | 195 | 88 | 28 | 3 | 4 | 4-26 |
| PN160 FM | ||||||||||||
| NPS（英寸） | Ød | L | H(open) | ØW | A | B | C | d | T | f | f2 | n-Ø |
| 1/2″ | 10.5 | 170 | 163 | 100 | 45 | 75 | 105 | 40 | 20 | 2 | 4 | 4-14 |
| 3/4″ | 13 | 190 | 200 | 125 | 58 | 90 | 130 | 51 | 24 | 2 | 4 | 4-18 |
| 1″ | 17.5 | 210 | 220 | 160 | 68 | 100 | 140 | 58 | 24 | 2 | 4 | 4-18 |
| 1 1/4″ | 24 | 230 | 252 | 160 | 78 | 115 | 155 | 66 | 28 | 2 | 4 | 4-22 |
| 1 1/2″ | 29 | 260 | 290 | 180 | 88 | 125 | 170 | 76 | 28 | 3 | 4 | 4-22 |
| 2″ | 36.5 | 300 | 345 | 200 | 102 | 165 | 195 | 88 | 30 | 3 | 4 | 4-26 |
| PN250 FM | ||||||||||||
| NPS（英寸） | Ød | L | H(open) | ØW | A | B | C | d | T | f | f2 | n-Ø |
| 1/2″ | 10.5 | 170 | 163 | 100 | 45 | 90 | 130 | 40 | 26 | 2 | 4 | 4-18 |
| 3/4″ | 13 | 190 | 200 | 125 | 58 | 95 | 135 | 51 | 28 | 2 | 4 | 4-18 |
| 1″ | 17.5 | 210 | 220 | 160 | 68 | 105 | 150 | 58 | 28 | 2 | 4 | 4-18 |
| 1 1/4″ | 24 | 230 | 252 | 160 | 78 | 120 | 165 | 66 | 32 | 2 | 4 | 4-22 |
| 1 1/2″ | 29 | 260 | 290 | 180 | 88 | 135 | 185 | 76 | 34 | 3 | 4 | 4-22 |
| 2″ | 36.5 | 300 | 345 | 200 | 102 | 150 | 200 | 88 | 38 | 3 | 4 | 8-26 |
技术资料
1.设计与制造:JB/T7746;GB/T12224
2.结构长度:JB/T7746或客户需求
3.法兰端尺寸：GB/T9113，JB/T82.1-82.4
4.检验与试验:JB/T9092;GB/T26480
5.结构特征：B·B(中部螺栓)W·B(中部焊接)流量:全径(FP)缩径(RP)
6.主体材料：A105N,LF2,LF3,F11,F5,F22,F304,F304L.F316,F316L,F321H,F51,F53,F55,F91,F92,F347,310S,800H,600,625特殊材料等
